XY-P15W High Power Digital Audio Board with 12V/24V Voltage Range and Super Bass Stereo Sound for Amplifier Audio Module

Name: XYP15W High Power Digital Audio Board with 12V24V Voltage Range and Super Bass Stereo Sound for Amplifier Audio Module
Brand: creatall
Price: 2.00 USD

Best XY-P15W High Power Digital Audio Board with 12V/24V Voltage Range and Super Bass Stereo Sound for Amplifier Audio Module wholesale

Place of Origin : Guangdong, China

Brand Name : creatall

Model Number : XY-P15W

Application : amplfiier audio module, Outdoor Activities

Voltage Range : 12V/24V

Mounting Type : DC

Description : Amplifier audio module

Product Name : amplifier board

Keyword : Digital Power Amplifier Module XY-P15W

Function : Large Capacity Switching Power Amplifier

Feature : Super Bass Stereo Sound

MOQ : 30 Pcs

Chip : XY-P15W

MOQ : 10 pieces

Price : $2.00 - $3.80/pieces

Contact Now

XY-P15W High Power Digital Audio Board

12V/24V Voltage Range High Power Digital Audio Board For Amplifier Audio Module

Product Overview

XY-P15W High Power Digital Audio Board with 12V/24V Voltage Range and Super Bass Stereo Sound for Amplifier Audio Module

10W/15W/20W Stereo BT Power Amplifier Board 12V/24V High Power Digital Power Amplifier Module XY-P15W

Name: BT Digital Power Amplifier Module
Model: P15W

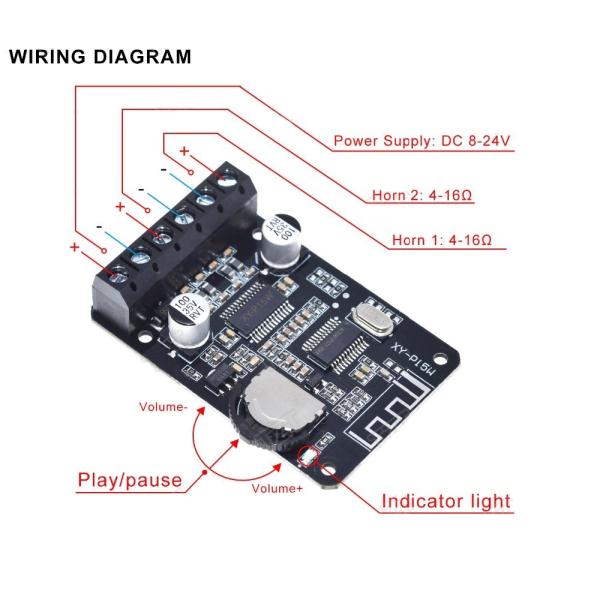

Working voltage: DC: 8-24V
Bluetooth Version: 5.0
Transmission distance: 15m (visible occlusion)
Number of vocal tracts: Dual Channel (Stereo)
Output power(@1KHz):
- 16W*2 @12V 4Ω
- 10W*2 @12V 8Ω
- 15W*2 @16V 8Ω
- 20W*2 @20V 8Ω
- 30W*2 @24V 8Ω (Need to add radiator)
Adapted horn: 4Ω (8-12V Power supply), 8Ω (8-24V Power supply), 16Ω (8-24V Power supply)
Modular protection mechanism: Back-connection protection of power supply, Short circuit protection, Self-recovery overheating protection

Usage Precautions

Use power amplifier board as far away from WiFi signal as possible (router)
Recommended supply voltage is 8-24V, over 26V, the chip will burn out
The power supply shall not exceed 12V for 4Ω speakers and 24V for 8Ω speakers
Power supply current recommendation more than 2A
The working power of the module exceeds 20W*2, and the radiator is needed
Horn line should not be too long to ensure that 1 meter is suitable
Pay attention to electrostatic protection, contact between power amplifier boards need to release the hand electrostatic, to avoid electrostatic chip breakdown. Bluetooth chip is more sensitive to electrostatic
It is suggested that the rated power of the horn be adapted to 30W or more to avoid the burning of the horn due to heat

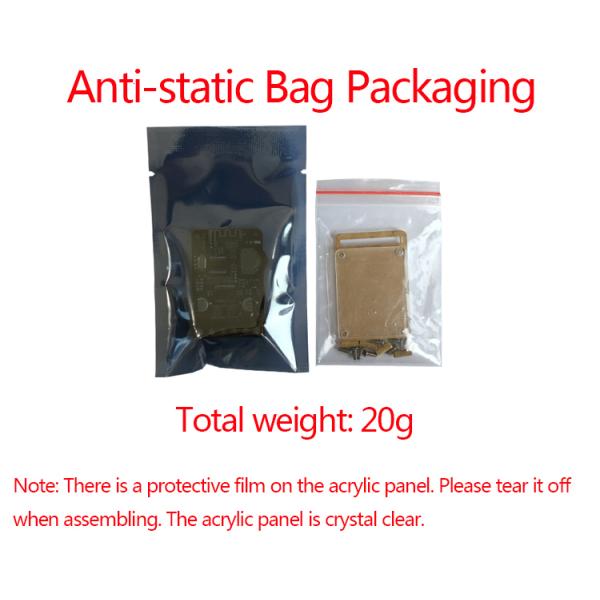

There is a protective film on acrylic. Please tear it off when assembling
